Model No.: ASD-23
Brand: ASD
North American rubber manufacturers often struggle with uneven temperature stratification inside conventional vulcanizing vessels, creating inconsistent curing and variable rubber hardness across stacked batches. Our Vertical Vulcanizing System delivers balanced thermal distribution. This Vertical Tank for Vulcanizing supports repeatable curing cycles, and High Pressure Storage Tank works alongside Storage Tank, Industrial Storage, High-Quality Tanks and Durable Pressure Vessels for rubber production lines.
| Thermal Circulation & Temperature Uniformity Attribute | Details |
|---|---|
| Internal Circulation Structure | Built-in axial steam circulation baffle + forced convection flow channel |
| Rated Working Pressure | Max 1.8 MPa, compatible for high-temperature rubber vulcanization cycles |
| Temperature Deviation | ±2℃ across all loading zones inside the vertical vessel chamber |
| Main Vessel Material | SA516 Gr70 pressure shell, optional SUS304 internal cladding |
| Loading Capacity | 0.8 m³ – 18 m³ internal volume, designed for vertical rack stacking |
| Inspection Deliverables | Thermal mapping test report, ASME Pressure Vessel certificate, cycle operation log |
| Application Scenario | B-end Buyer Type | Local Pain Point | Our Product Advantage & Selling Point |
|---|---|---|---|
| Industrial Rubber Hose Continuous Batch Curing | Rubber product factory procurement managers | Standard vulcanizing tanks have hot and cold zones; 34% of finished batches fail hardness testing; high scrap and rework cost | Our Vertical Vulcanizing System stabilizes internal heat distribution; temperature-induced curing defects reduced by 95%; rubber batch scrap rate cut by 28% |
An Indiana industrial rubber hose producer supplies reinforced rubber hoses for hydraulic and construction markets. They previously used basic vertical vulcanizing vessels without internal circulation baffles. Hot steam accumulated near the top while the lower racks stayed cooler, leading to inconsistent cross-linking. Before upgrading, roughly 32.2% of their cured hose batches failed hardness and tensile strength QC checks. Each rejected batch required reprocessing or scrapping, with average rework handling time of 34 labor hours per failed run. Their annual scrap, rework and material waste cost from uneven curing reached $48,100.

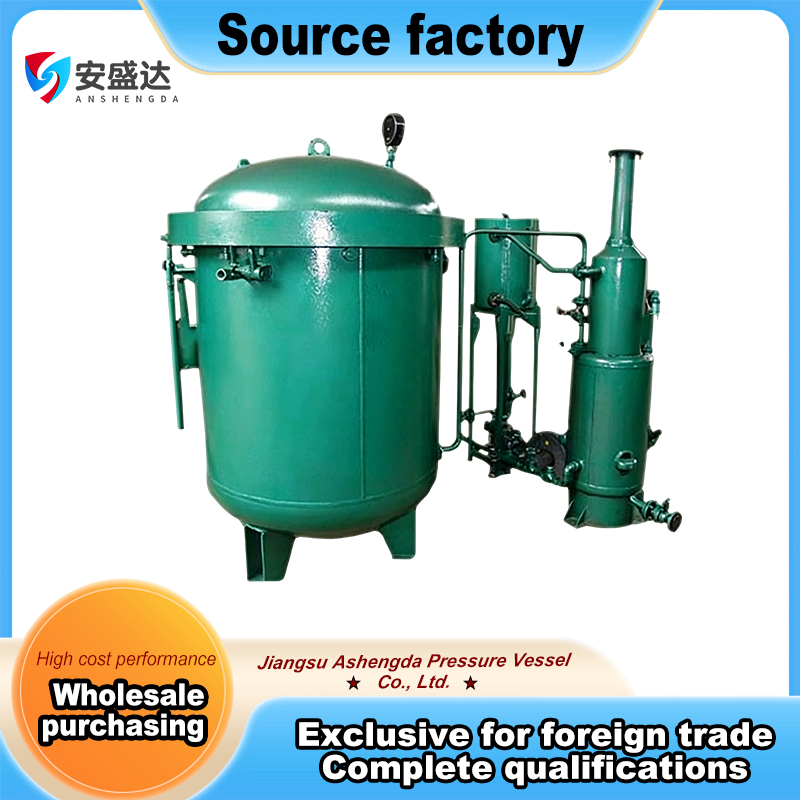

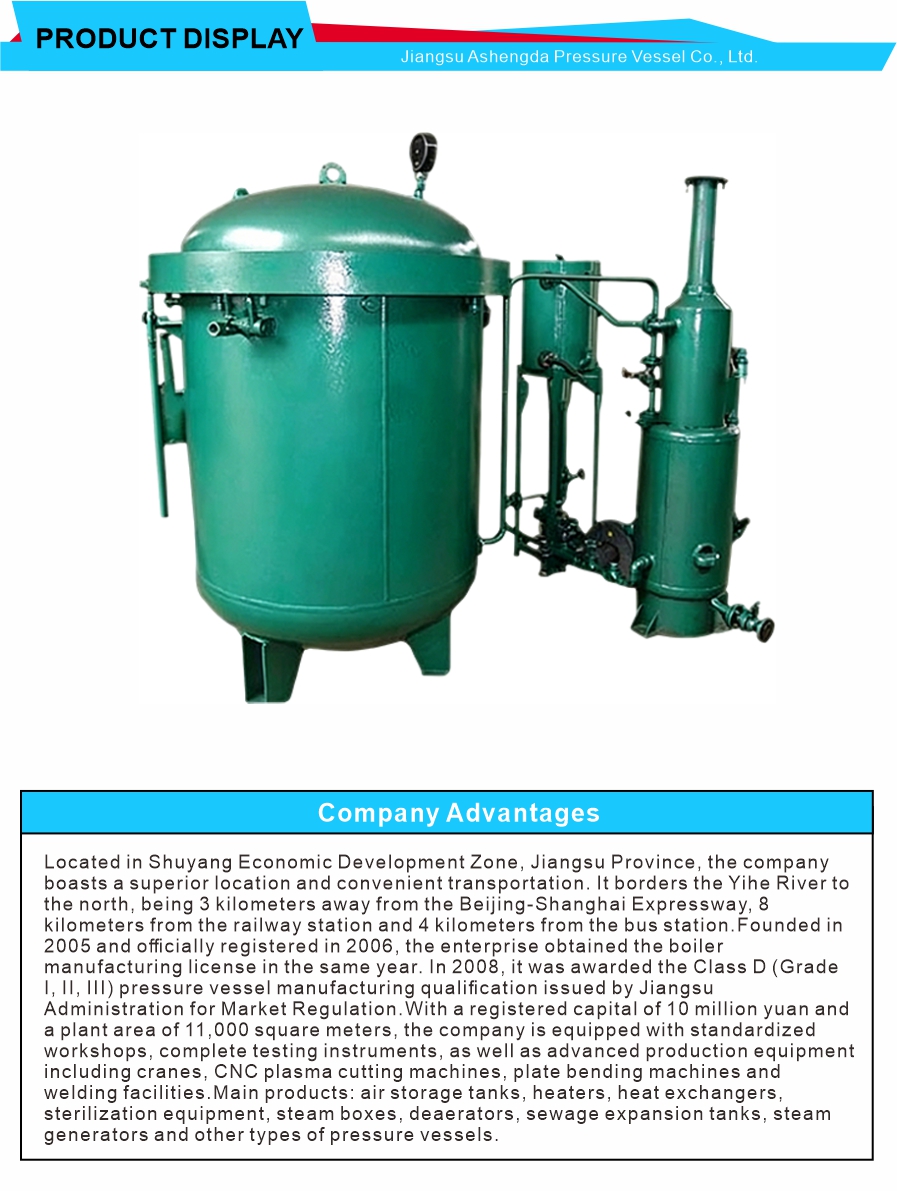

After deploying our Vertical Vulcanizing Tank Unit, the integrated forced convection baffle system eliminates thermal stratification across rack layers. Temperature-related curing failure rate dropped to 1.2%. Average troubleshooting and re-calibration time for rare adjustments fell to 7.3 hours, and their yearly quality loss expenditure decreased to $5,060. As a multi-functional Vertical Tank for Vulcanizing, it can also be configured as a High Pressure Storage Tank for auxiliary process media when production recipes change.
Built for rubber batch curing where uniform heat exposure directly determines final material performance, this vertical vulcanizing tank unit solves layered temperature imbalance through guided steam circulation. Every rack position receives equivalent heat, stabilizing tensile strength, elongation and hardness for finished rubber parts. We supply this Vertical Vulcanizing System as part of our vessel portfolio alongside Storage Tank, Industrial Storage and High-Quality Tanks; Durable Pressure Vessels support other pressurized processing and containment requirements.
Q1: Can this vertical vulcanizing tank maintain tight temperature uniformity?
A1: Yes, controlled within ±2℃ across the full loading zone.
Q2: Is it certified to ASME pressure vessel standards?
A2: ASME certification and thermal mapping test reports are provided.
Q3: Can the same vessel serve as a High Pressure Storage Tank for media?
A3: Yes, it supports dual-purpose curing or pressurized storage upon request.
Send your required batch volume, target vulcanization pressure and temperature range today. Our pressure vessel engineering team will prepare a formal quotation and lead time for your Vertical Vulcanizing System order, plus matching Storage Tank and High-Quality Tanks from our Durable Pressure Vessels portfolio for your rubber manufacturing line.
