Model No.: ASD-53
Brand: ASD

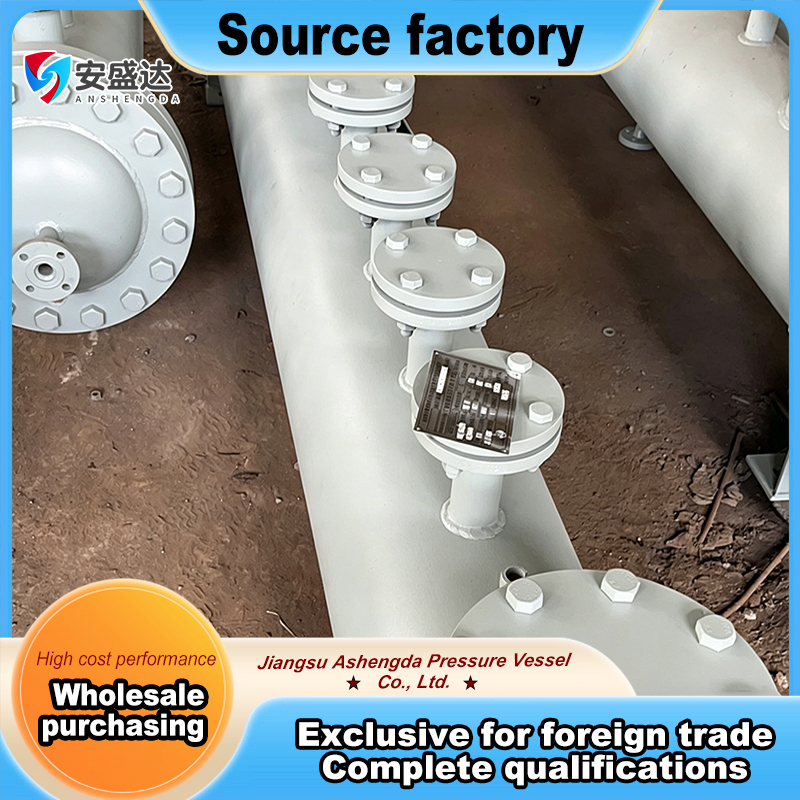

Pipeline diversion steam header addresses uneven steam distribution and frequent thermal leakage issues that plant maintenance teams face when diverting high-temperature steam to multiple production branches. This robust Steam Header Vessel Pipeline Diversion balances pressure and stabilizes flow for multi-branch heating circuits, supporting reliable operation of Corrosion Resistant Pressure Vessel systems. Many factories use makeshift split fittings that trigger pressure fluctuation and energy loss, while this Resistant Vessel Pipeline Diversion Header offers precise flow control and works as a durable Steam Header Pipeline Diversion Proof component within tailored Custom Pressure Vessels and budget-friendly Affordable Pressure Vessels solutions.
| Parameter | Detailed Value |
|---|---|
| Design Material | Carbon steel or 304 stainless steel, high-temperature resistant |
| Design Pressure | 1.0 MPa ~ 2.5 MPa, customizable per process requirement |
| Design Temperature | 180°C ~ 220°C saturated steam working range |
| Branch Port Layout | 2–8 diversion outlets, flanged connection standard |
| Internal Structure | Baffle plate flow stabilizer, condensate drain port |
| Surface Treatment | Sandblasting + high-temperature anti-rust primer coating |
| Application Scenario | B-Buyer Type | Local Pain Point | Product Advantage & Quantitative Data |
|---|---|---|---|
| Food processing factory central steam diversion for drying and sterilization lines | Industrial process equipment procurement contractor | Simple tee diverters cause 29% steam pressure imbalance across branches; heat loss wastes 14% of boiler fuel; unstable steam disrupts sterilization cycles | Built-in flow baffle reduces pressure deviation by 83%; sealed flanged connections cut thermal energy loss by 72%; integrated drain port lowers condensate water hammer risk by 78% |
A process equipment procurement contractor serving food sterilization and drying factories previously assembled steam diversion networks using ordinary pipe tees and loose connectors. Before switching to this Steam Header Vessel Pipeline Diversion, their site operation data showed 28 out of every 100 production lines suffered unstable steam pressure. Uneven steam supply led to inconsistent sterilization temperature and batch product disqualification, and continuous heat leakage pushed up monthly boiler fuel expenditure. Maintenance crews also spent long hours adjusting valves and draining accumulated condensate each shift.
After installing this Resistant Vessel Pipeline Diversion Header and Steam Header Pipeline Diversion Proof assembly as the main diversion node, the contractor deployed these headers across 16 food processing production lines. Within 11 months, steam imbalance and heat leakage related failures dropped to only 3 per hundred production lines. Average daily valve adjustment and condensate draining time for each steam loop fell to 37 minutes. The internal flow stabilizer ensures uniform steam delivery to every branch, while the dedicated drain port prevents water hammer damage to downstream piping. This upgrade proves that well-engineered Corrosion Resistant Pressure Vessel components improve system stability, and Custom Pressure Vessels like this header deliver practical, cost-effective Affordable Pressure Vessels options for continuous thermal processing plants.
Contact our sales team for industrial heating project quotations and custom drawing confirmation. We supply heavy-duty Steam Header Vessel Pipeline Diversion and Resistant Vessel Pipeline Diversion Header, ready to enrich your Corrosion Resistant Pressure Vessel and Custom Pressure Vessels inventory for thermal process plant buyers.
